The 11kV 100A porcelain cutout fuse is an outdoor equipment used for distribution line protection, providing high mechanical strength and insulation performance through porcelain insulator, supporting 540mm creepage distance, suitable for pollution class III.-IV. areas. Its core features include:
Overload/short-circuit protection: The fuse tube blows under the fault current and automatically falls, forming an obvious break point.
Isolation function: Manually operated lever disconnects the load current for access isolation.
Spot welding process: The fuse tube and the contact are connected by spot welding to ensure low contact resistance (≤50μΩ) and high breaking reliability.
According to IEC 60282-1, GB/T 15166.2)
| Parameters | Technical indicators |
| Rated voltage: | 11kV (maximum applicable voltage: 12kV) |
| Rated current | 100A (continuous current carrying capacity, temperature rise ≤ 65K) |
| Creepage distance: | ≥540mm (anti-fouling flashover design on porcelain surface) |
| Power Frequency Withstand Voltage | 38kV/1min (Dry), 28kV/1min (Wet) |
| Lightning impulse withstand voltage | 95kV (peak, 10 times each of positive and negative polarity) |
| Breaking capacity 12.5kA (symmetrical RMS) | 12.5kA (symmetrical RMS) |
| Mechanical Strength | The flexural strength of the porcelain body ≥ 8kN, and the contact pressure ≥ 200N |
| Spot welding process | The fuse tube is resistantly welded with copper contact, and the contact resistance is ≤ 50μΩ |
| Weight: | 3.5-4.2kg (including fuse tube) |
| Degree of protection | IP55 (dust and water resistance) |

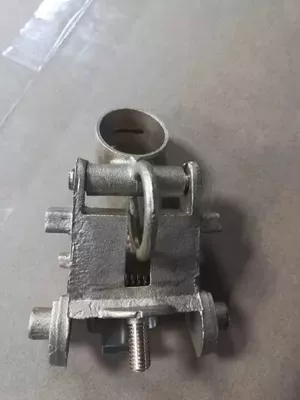

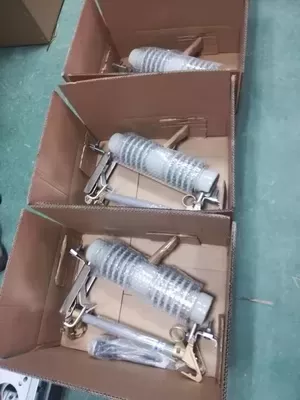

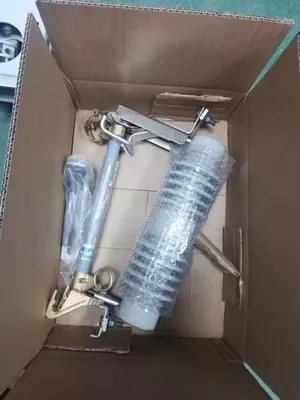

Packaging & Delivery
- Packaging Details
- In carton and export standard packing
QTY: 3 pcs
N.W: 15.9 kgs
G.W: 17.2 kgs
MEAS: 42*32.5*34.5 cm
- Port
- Ningbo or Shanghai
- Lead Time :
-
Quantity(Pieces) 1 – 300 301 – 900 >900 Est. Time(days) 10 12 To be negotiated
