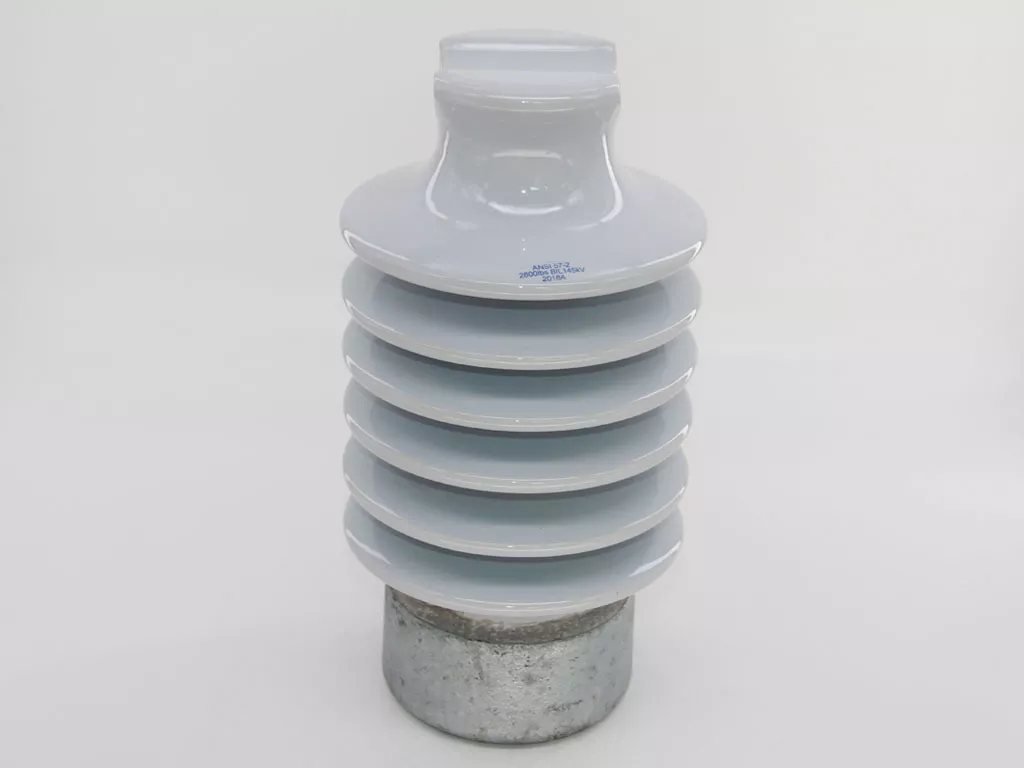

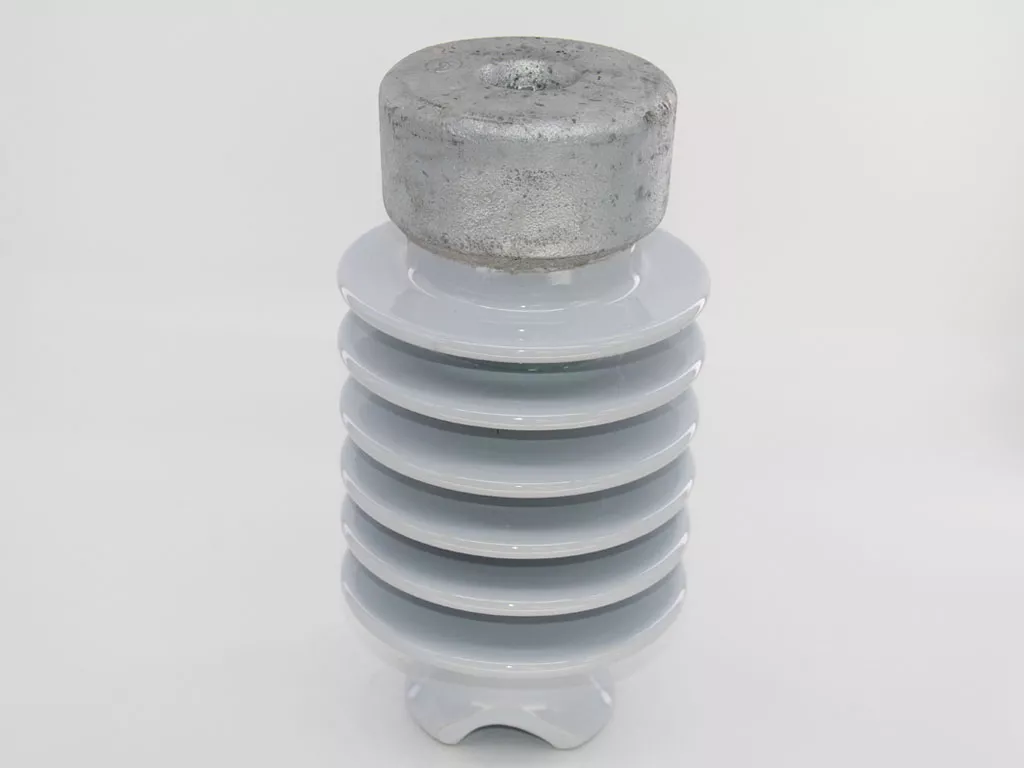

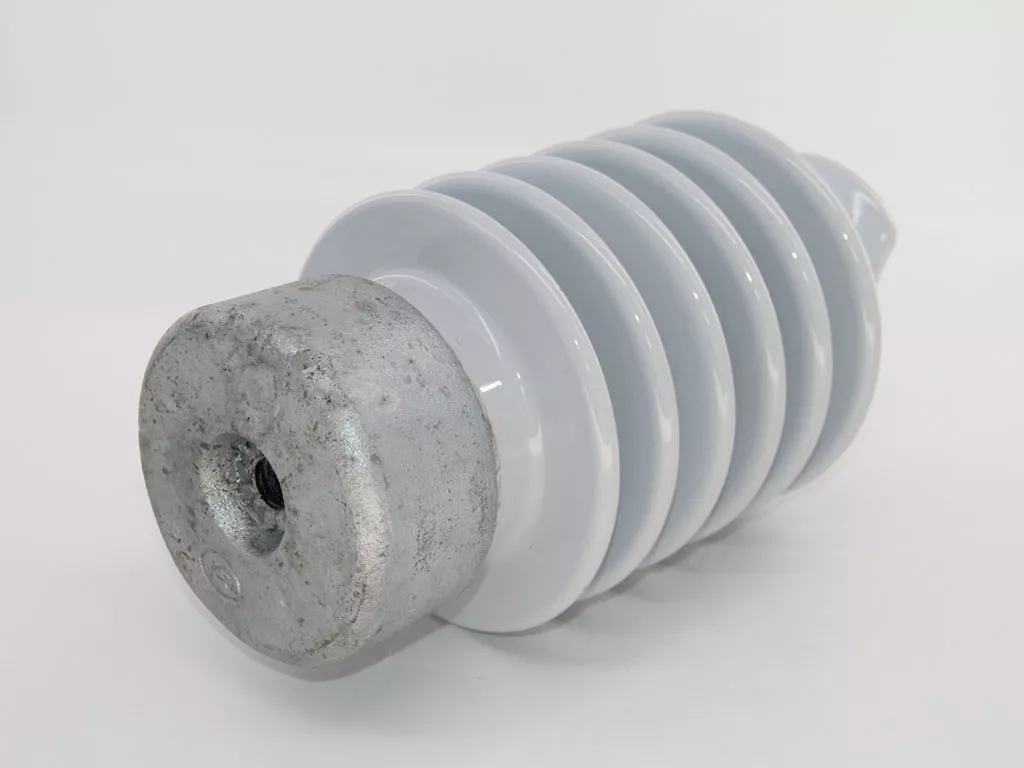

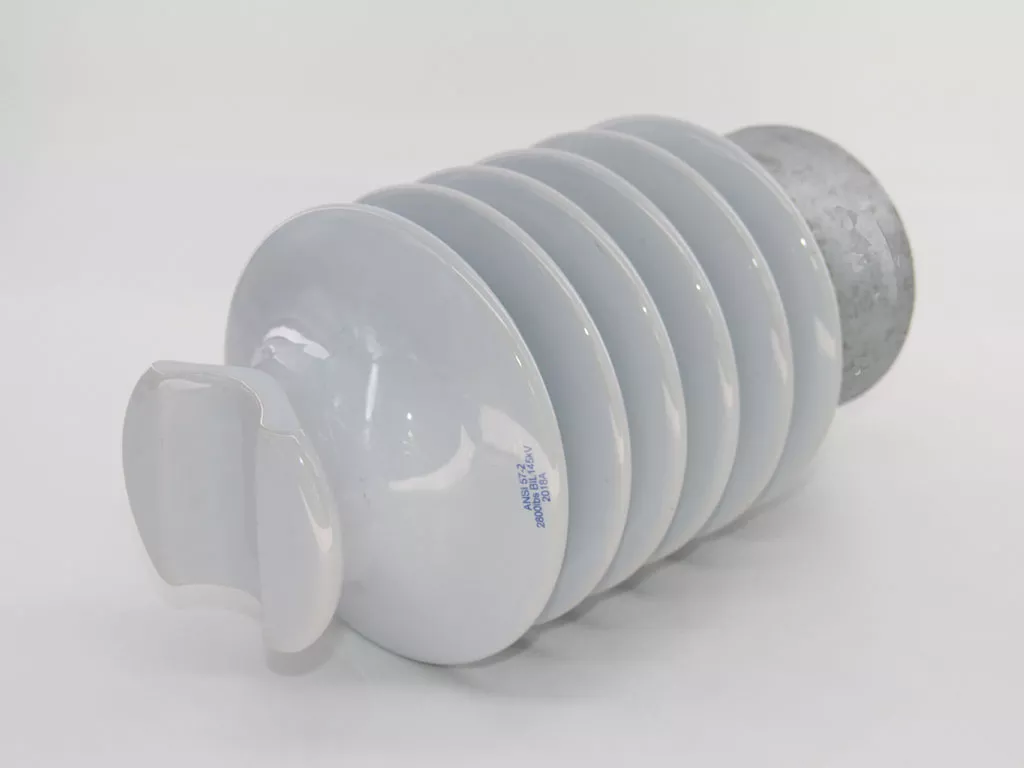

Line Post Insulators ANSI 57-2

Availability In Stock

Line Post Insulators ANSI 57-2 offered by China manufacturer Sasun International Electric Co., Ltd.. Buy Line Post Insulators ANSI 57-2 directly with low price and high quality.

Line Post Insulators ANSI 57-2
Dimensions
Diameter (D): 6Inches(152mm)
Height (H): 12Inches(305mm)
Leakage Distance: 22Inches(559mm)
Dry Arcing Distance: 9 1/2Inches(241mm)

Mechanical Values
Cantilever Strength: 2,800Pounds(12.5kN)
Cantilever Strength Routine Test: 1,000Pounds(5kN)

Electrical Values
Type Application Voltage: 35kV
Low Frequency Dry Flashover Voltage: 110kV
Low Frequency Wet Flashover Voltage: 85kV
Critical Impulse Flashover Votage Positive: 180kV
Critical Impulse Flashover Votage Negative: 205kV

Radio Influence Voltage Data
Test Voltage RMS to Ground: 22kV
Maximum RIV at 1000 kHz: 100μV
