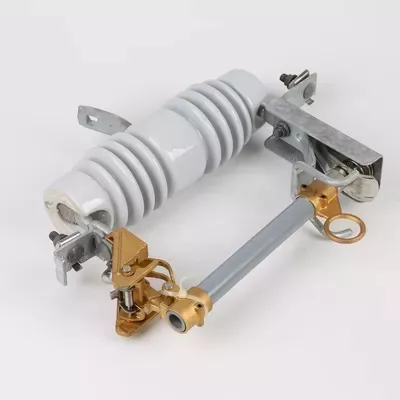

Drop-fuse installation of the technical requirements:
1 . Drop fuse base (bracket) and parts of the parts should be complete, fixed and solid, three-phase fulcrum in the same plane.
2, 10 KV drop-out fuse horizontal distance should not be less than 500mm.
| Type | 11KV DOFC/100 | 11KV DOFC/200 |
| Rated Voltage(kV) | 10-15 | 10-15 |
| Rated current(A) | 100 | 200 |
| Breaking current(A) | 10000 | 12000 |
| Impulse voltage(kV) | 110 | 110 |
| Power frequency wihstand voltage(kV) | 42 | 42 |
| Creepage distance(mm) | 250 | 250 |
| Weight(kg) | 7 | 7 |
| Dimensions(CM) | 38.5*34.5*10.5 | 38.5*34.5*10.5 |
-
Packaging & Delivery
- Lead Time :
-
Quantity(Pieces) 1 – 300 301 – 900 >900 Est. Time(days) 10 12 To be negotiated - Port
- Ningbo or Shanghai
- Packaging Details
- In carton and export standard packing
QTY: 3 pcs
N.W: 15.9 kgs
G.W: 17.2 kgs
MEAS: 42*32.5*34.5 cm
