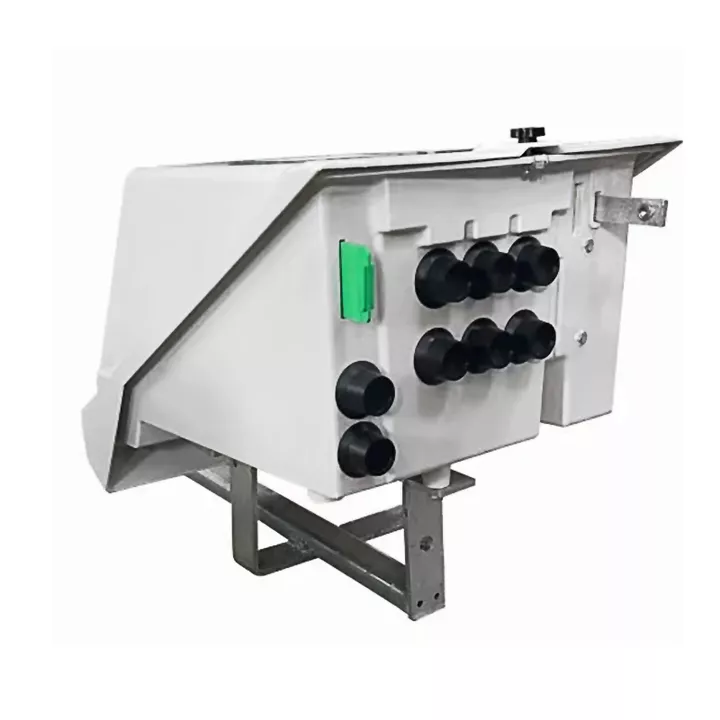

D165T D265T High Efficiency Digital Trip Unit Steel Distribution Box Power Equipment Capacities 25KAV 50KAV 100KAV 160KAV

Availability In Stock

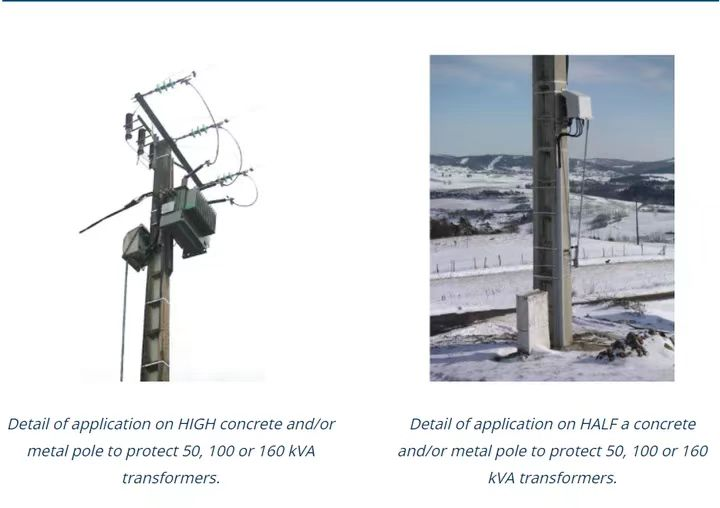

D165T-D265T pole mounted distribution transformer protection circuit breakers for top or middle pole mounting and 50, 100 or 160 kVA transformers designed for low voltage overhead protection. They prevent overloads and short circuits and phase imbalances. Its double trip device allows it to trip, automatically resetting itself to allow reconnection (network shutdown) without any maintenance .

Key attributes

Industry-specific attributes

Voltage	440V
Current	165A, 265A

Other attributes

Place of Origin	ZHEJIANG
Brand Name	SASUN
Model Number	D156T/D256T
Application	Electric Power Transmission
Product Name	Distribution Box
Material	nylon
Certificate	CE ROHS
Function	Electric Energy Distribute
Rated Voltage	240/440V
Frequency	50/60 Hz

Packaging and delivery

Selling Units:	Single item
Single package size:	15X10X7 cm
Single gross weight:	1.000 kg

Samples

Maximum order quantity	1 parcel
Sample price:	$467.00/parcel

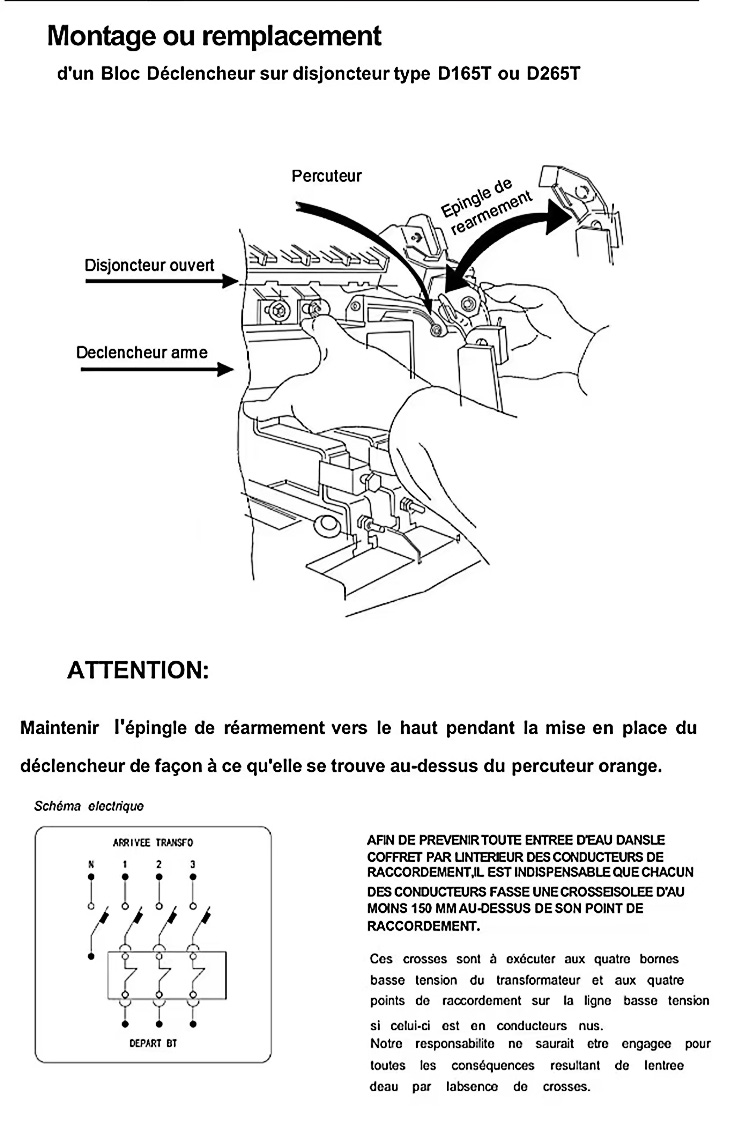

Details Images

	D165T	D265T
Maximum transformer power	50/100KVA	50/100/160KVA
Assigned Current	165A	265A
Maximum number of outputs	1	2
Assigned Short Circuit Cutoff Current	4KA	6.4KA
Assigned Current Short Circuit Closure	6.8KA	11.7KA
Assigned voltage	400V	400V
frequency	50/60HZ	50/60HZ
Voltage Withstanding Frequency Industry	4KV ( 1min) Phase – 10KV (1Min) earth
Impulse voltage type bil ray	20KV
Protection Index	IP 337
