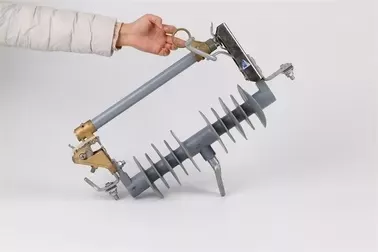

The 15kV 100A polymer cutout fuse replaces the traditional porcelain insulator with silicone rubber composite insulating material, which has the characteristics of light weight (weight reduction by 50%), impact resistance, anti-pollution flashover and long life (≥ 30 years), suitable for:
Harsh environments: high humidity, strong ultraviolet rays, coastal salt spray areas
Frequent operation scenarios: photovoltaic/wind power collector lines, urban ring main unit
High reliability requirements: no need for regular cleaning, maintenance-free design
| parameter | Technical Indicators |
| Rated voltage | 15kV (up to 17.5kV) |
| Current rating | 100A (continuous current-carrying, temperature rise≤55K) |
| Breaking capacity | 16kA (symmetrical RMS, 0.2s) |
| Withstand lightning impulse voltage | 110kV (peak, 10 times each of positive and negative polarity) |
| Creepage distance | ≥540mm (silicone rubber umbrella skirt, anti-fouling flash design) |
| 工频耐压 | 45kV/1min (dry), 35kV/1min (wet) |
| Mechanical life | ≥5000 times (silver plated contacts, wear rate ≤ 0.1μm/time) |
| Ingress protection | IP68 (fully sealed structure, can be immersed in water for 1m/1h) |
| UV resistance rating | UV-C (Resistant to ≥ 15 years of strong sunlight) |
| weight | 2.8-3.5kg (only 40% of porcelain fuse) |
